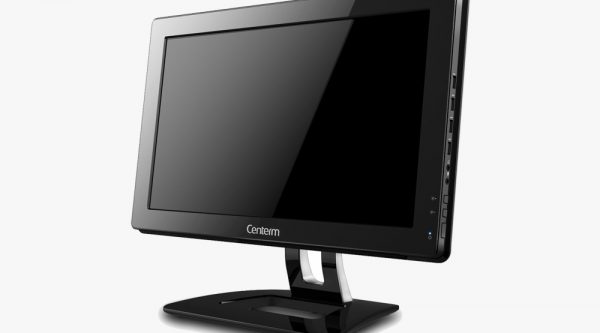

N660

N660 All-in-One thin client is the perfect replacement of PC plus monitor solution adopting high performance Intel i3/i5 processor, big 18.5” LCD screen and elegant design.




PROFILE Of N660
N660 All-in-One thin client is the perfect replacement of PC plus monitor solution adopting high performance Intel i3/i5 processor, big 18.5” LCD screen and elegant design.
FEATURES Of N660
Professional operating system
Secure and reliable, simple and easy to use.
VDI Support
Support Citrix, VMware and Microsoft virtualization solutions and offer smooth user experience.
Leading the All-in-One Trend
With the compact and stylish appearance, greatly saves users’ space.
Varied Peripherals
6 USB ports, compatible with major peripherals.
SPECIFICATION
SYSTEM
Processor Intel i3-4170 Dual core 3.7GHz or
Intel i5-4570s Quad core 2.9GHz
Available Operating System WES7 / WES8 / Win 10 IOT
VDI/HSD Citrix Receiver / VMware view / Microsoft RDP 8 Compatible
Management CCCM
MEMORY
RAM 4GB DDR3 ( Max up to 8GB)
Storage 500GB HDD (optional 8GB – 128GB SSD)
DISPLAY
Screen 18.5”
Port 1x VGA optional
Resolution 1366 x 768 up to 2560 x1600
Dual Display Optional (extended mode)
NETWORK
LAN 1x (10/100/1000 Base-T Fast Ethernet, RJ-45)
1x optional (10/100/1000 Base-T Fast Ethernet, RJ-45)
WLAN Optional Mini PCI-E wireless
I/O PERIPHERAL INTERFACE
USB 2.0 4x
USB 3.0 2x
RJ-45 1x
PS/2 2x
Power Interface 1x
Serial 1x (extensible to 4 via cable)
Parallel 1x optional
Camera
Camera Optional, 2-megapixel embedded camera
Audio
Port 1x Mic-in , 1x Line-out
DIMENSION
Device (including stand) 385mm x 485.2mm x 206mm
Packaging 574mm x 226mm x 464mm
Net Weight 5.92 kg
POWER
Adapter Worldwide auto-sensing 100-240V AC, 50/60 Hz, 19V/4.74A DC
Power Consumption 28.12w
MOUNTING
Stand Vertical feet standard/ Wall mounted
Security Standard Kensington anti-theft keyhole
ENVIRONMENT
Cooling Fan-less Convection
Operation Temperature 0°C to 40°C
Relative Humidity 30% to 90% non-condensing
