N610

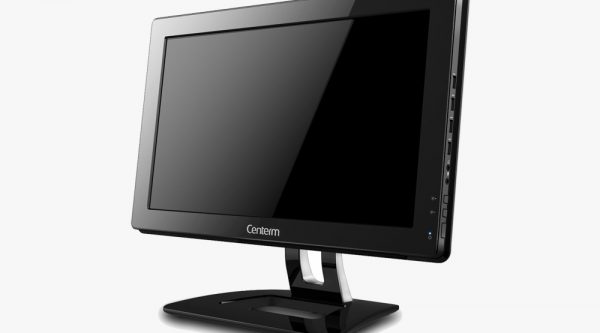

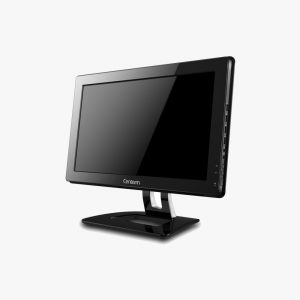

N610 All-in-One thin client is the perfect replacement of PC plus monitor solution adopting high performance Intel processor, big 18 5” LCD screen and elegant design




PROFILE Of N610
N610 All-in-One thin client is the perfect replacement of PC plus monitor solution adopting high performance Intel processor, big 18 5” LCD screen and elegant design
FEATURES Of N610
Professional operating system
Secure and reliable, simple and easy to use.
VDI Support
Support Citrix, VMware and Microsoft virtualization solutions and offers smooth user experience.
Leading the All-in-One Trend
With the compact and stylish appearance, greatly saves users’ space, leads the All-in-One Trend.
Varied Peripherals
6 USB ports, 1 serial port and 1 parallel port, compatible with lots of peripherals.
SPECIFICATION
SYSTEM
Processor Intel dual-core 2.41Hz or
Intel quad-core 2.0GHz
Available Operating System WES7 / WES8 / Win 10 IOT
VDI/HSD Citrix Receiver / VMware view / Microsoft RDP 8 Compatible
Management CCCM
MEMORY
RAM 2GB DDR3L ( Max up to 8GB)
Storage 8GB MSATA(up to 128GB SSD or optional HDD)
DISPLAY
Screen 18.5”
Port 1x VGA optional
Resolution 1366 x 768 up to 2560 x1600
Dual Display Optional (extended mode)
NETWORK
LAN 1x (10/100/1000 Base-T Fast Ethernet, RJ-45)
WLAN Optional Mini PCI-E wireless
I/O PERIPHERAL INTERFACE
USB 2.0 4x
USB 3.0 2x
RJ-45 1x
PS/2 2x
Power Interface 1x
Serial 1x (extensible to 4 via cable)
Parallel 1x optional
Camera
Camera Optional, 2-megapixel embedded camera
Audio
Port 1x Mic-in , 1x Line-out
DIMENSION
Device (including stand) 385mm x 485.2mm x 206mm
Packaging 574mm x 226mm x 464mm
Net Weight 5.51 kg
POWER
Adapter Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/5A DC
Power Consumption 20.52w
MOUNTING
Stand Vertical feet standard/ Wall mounted
Security Standard Kensington anti-theft keyhole
ENVIRONMENT
Cooling Fan-less Convection
Operation Temperature 0°C to 40°C
Relative Humidity 30% to 90% non-condensing
