F510

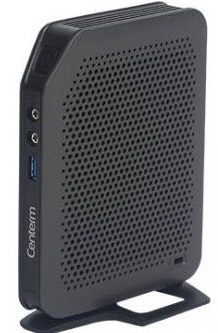

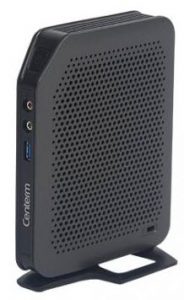

Centerm F510 is a cost-effective and compact thin client based on AMD LX platform. With high speed, low power consumption and 4K output supported, F510 can meet the demands of various virtual desktop accessing scenarios.




PROFILE Of F510
Centerm F510 is a cost-effective and compact thin client based on AMD LX platform. With high speed, low power consumption and 4K output supported, F510 can meet the demands of various virtual desktop accessing scenarios.
FEATURES Of F510
High reliability
High speed and low power consumption processor with fan-less and no-moving parts design, highly improving reliability.
Support 4K output and dual display
Multiple VDI protocol supported
Widely supports Citrix ICA/HDX, VMware PCoIP and Microsoft RDP.
Environment friendly
Low CO2 emission, low heat emission, noise-free and space saving.
SPECIFICATION
SYSTEM
Processor AMD GX218GL Dual-Core 1.8GHz
Available Operating System WES7 / WES8 / WIN 10 IOT / COS(Centerm Operating System (Linux).
VDI/HSD Citrix Receiver / VMware view / Microsoft RDP 8 Compatible
Management CCCM
MEMORY
RAM DDR3L 2GB ( Max up to 8GB)
Storage 8GB ( up to 16GB,32GB SSD)
DISPLAY
Port DVI-I x1(optional) DP x 1
Resolution 1920 x 1080@60Hz (DVI)&3840 x 2160@60Hz (optional DP)
Color Depth 32 bits
Dual Display Support
NETWORK
LAN 1x (10/100 Mbps Base-T Fast Ethernet, RJ-45)
WLAN Optional Mini PCI-E wireless (only 4 USB2.0 ports at the rear in such case )
I/O PERIPHERAL INTERFACE
USB 3.0 Front: x 1
USB 2.0 Rear: x 5 (No wifi), or x 4 (with Wifi)
AUDIO
Ports Front: Line-out x 1 , Mic-in x 1
DIMENSION
Device 131mm x 31.5mm x 167mm(stand not included)
131mm x 76mm x 178mm(stand included)
Net Weight 0.5kg
POWER
Adapter Worldwide auto-sensing 100-240V AC, 50/60 Hz,5V/3A DC
Power Consumption < 10w
MOUNTING
Stand Vertical feet stand, optional VESA mounting KitSecurity
ENVIRONMENT
Cooling Fan-less Convection
Operation Temperature 0C TO 40C℃
Relative Humidity 30% to 90% non-condensing
