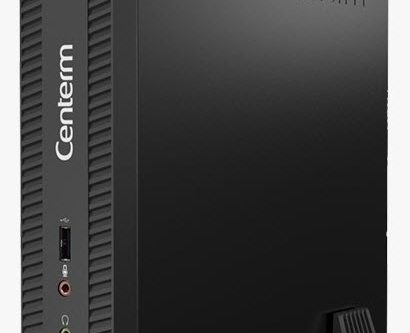

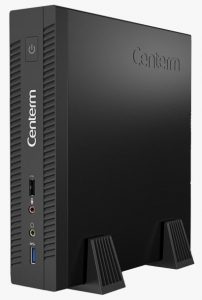

D610
D610 is a highly efficient and powerful thin client for both local computing and Microsoft, Citrix, VMware virtual desktop environments It has a zero-client style desktop with COS or a Windows style desktop with WES.
D610
| PROFILE Of D610 | |
| D610 is a highly efficient and powerful thin client for both local computing and Microsoft, Citrix, VMware virtual desktop environments It has a zero-client style desktop with COS or a Windows style desktop with WES | |
| FEATURES Of D610 | |
| Cost-effective Low price and high performance with intel Dual core CPU High reliability, no moving parts MTBF 40,000 hours, fanless cooling. Low power consumption A green product with low power consumption and low CO2 emission. Multiple interfaces 4 serial port, 1 parallel port, 1 USB 3.0 port, 5 USB 2.0 port, DVI-I port. Multiple VDI protocol supported Widely support Citrix ICA/HDX, VMware PCoIP and Microsoft RDP. |
|
| SPECIFICATION | |
| SYSTEM | |
| Processor | Intel Dual-Core 2.41GHz |
| Available Operating System | WES7 / WES8 / WIN 10 IOT / Centerm Operating System (Linux) |
| VDI/HSD | Citrix Receiver / VMware view / Microsoft RDP 8 Compatible |
| Management | CCCM |
| MEMORY | |
| RAM | 2GB DDR3L ( Max up to 8GB) |
| Storage | 8GB (up to 128GB SSD or optional HDD) |
| DISPLAY | |
| Port | 1x DVI-I (DVI-to-VGA adapter included) , 1x DP (optional) |
| Resolution | 1920×1200 (DVI) 2560×1600 (DP) |
| Color Depth | 32 bit |
| Dual Display | Y cable optional (extended mode) |
| NETWORK | |
| LAN | 1x (10/100/1000 Base-T Fast Ethernet, RJ-45) 1x optional (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| WLAN | Optional Mini PCI-E wireless |
| I/O PERIPHERAL INTERFACE | |
| USB 2.0 | 5x (1x front , 4x rear) |
| USB 3.0 | 1x |
| RJ-45 | 1x |
| Serial | 1x (expended to 4 via cable) |
| Parallel | 1x |
| PS/2 | 2x |
| AUDIO | |
| Ports | Line-out x 1 , Mic-in x 1 (1/8-inch mini jack) |
| DIMENSION | |
| Device | 206mm x 48mm x 215mm |
| Packaging | 483mm x 286mm x 115mm |
| Net Weight | 1.2 kg |
| POWER | |
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 12V/3A DC |
| Power Consumption | < 15w |
| MOUNTING | |
| Stand | Vertical feet standard |
| Kensington Lock | Built-in Kensington security slot |
| ENVIRONMENT | |
| Cooling | Fan-less Convection |
| Operation Temperature | 0°C to 40°C |
| Relative Humidity | 30% to 90% non-condensing |
