IPS-3082GC-AT

معرفی تجهیزات ORing

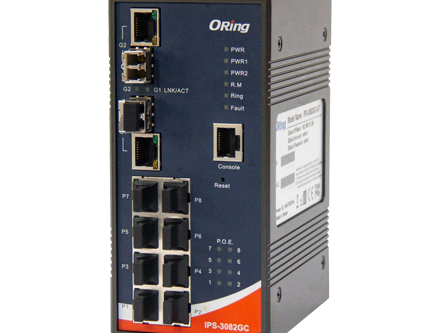

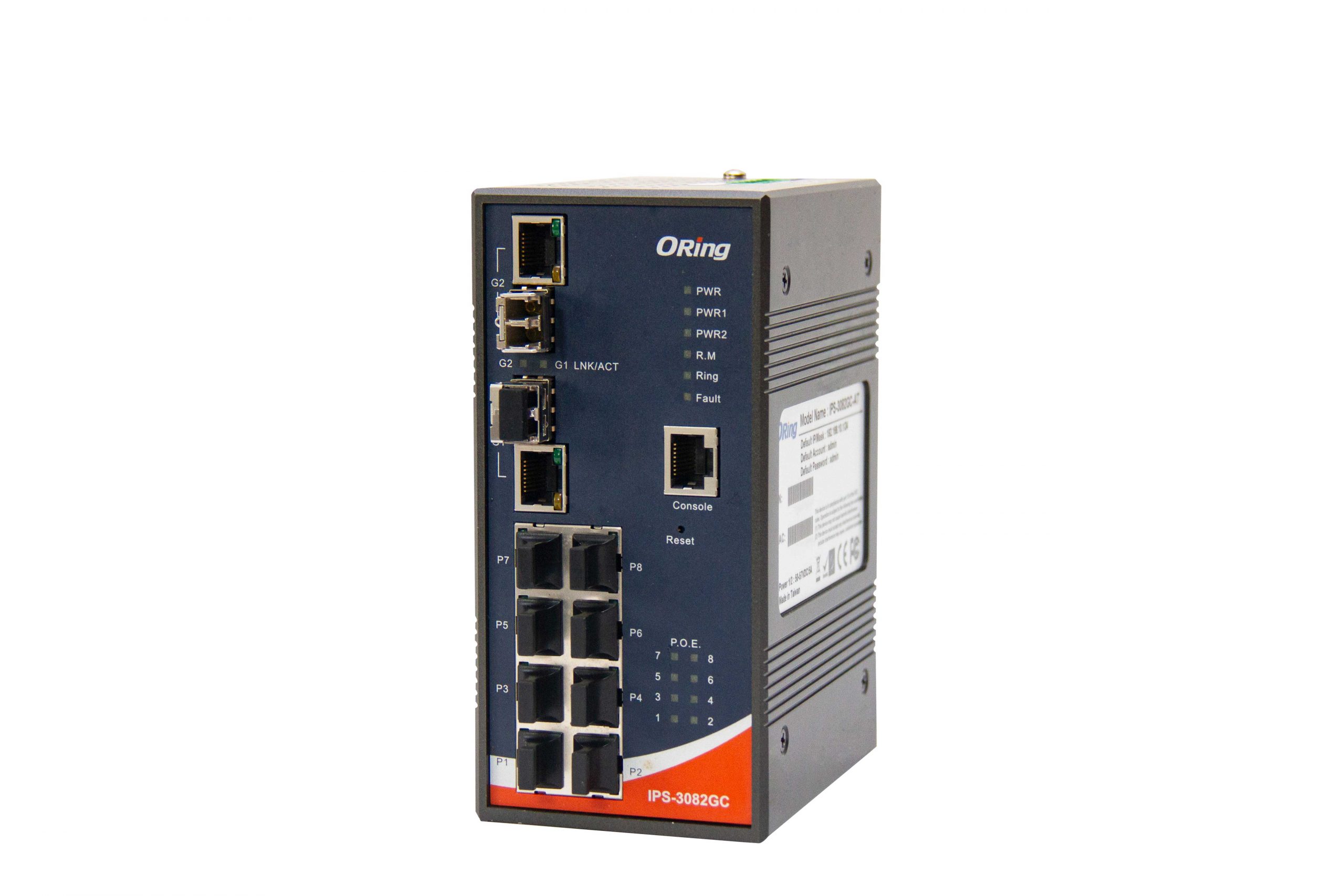

سوئیچ صنعتی IPS-3082GC-AT

IPS-3082GC-ATسوئیچ صنعتی 10 پورت،با قابلیت PoE و قابل مدیریت

8 پورت 10/100 PoE

2 پورت گیگابیت Combo (SFP/rj45)

دانلود ها ⇓

خرید آنلاین ⇓










Industrial 10-port managed PoE Ethernet switch with
8×10/100Base-T(X) P.S.E. and 2xGigabit combo ports, SFP socket

IPS-3082GC AT QIG1IPS-3082GC AT QIG2


▪ World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over
250 units of connection)
▪ Open-Ring support the other vendor’s ring technology in open architecture
▪ O-Chain allow multiple redundant network rings
▪ Support standard IEC 62439-2 MRP*NOTE (Media Redundancy Protocol) function
▪ STP/RSTP:2004/MSTP supported
▪ 8 ports P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
▪ Provide PoE power on delay function, users can define delay time for PoE power supply
▪ Support IPV6 new internet protocol version
▪ Support PTP Client (Precision Time Protocol) clock synchronization
▪ Provided HTTPS/SSH protocol to enhance network security
▪ Support Modbus/TCP protocol
▪ Rigid IP-30 housing design
▪ DIN-Rail and wall mounting enabled

  • با توجه به اینکه این سوئیچ POE می باشد، برای راه اندازی این دستگاه و استفاده از پورت های POE برای روشن کردن تجهیزات تحت شبکه مانند دوربین، پیشنهاد می شود از منبع تغذیه 70 وات به بالا استفاده شود.
  • هر پورت POE این سوئیچ حداکثر توان 30 واتی تامین می کند، و خود دستگاه نیز با 8 وات راه اندازی می شود.
  • بسته به تعداد پورت POE مورد نیاز و توان مصرفی هر نود، منبع تذیه انتخاب شود.
  • پیشنهاد ORing برای منبع تغذیه و ماژول SFP:

SFP100 series, 100Mbps SFP optical transceiver

SFP1G series, 1Gbps SFP optical transceiver

DR-75-48, 75W DIN-Rail power supply

DR-120-48, 120W DIN-Rail power supply

SDR-240-48, 240W DIN-Rail power supply
