To support various IoT applications, the MIC-7 series can be equipped with various Intel® processors, including those from the Atom®, Core™, Pentium®, Celeron®, and Xeon® families. The wide selection of compatible processors allows customers to flexibly configure custom solutions based on specific application requirements.

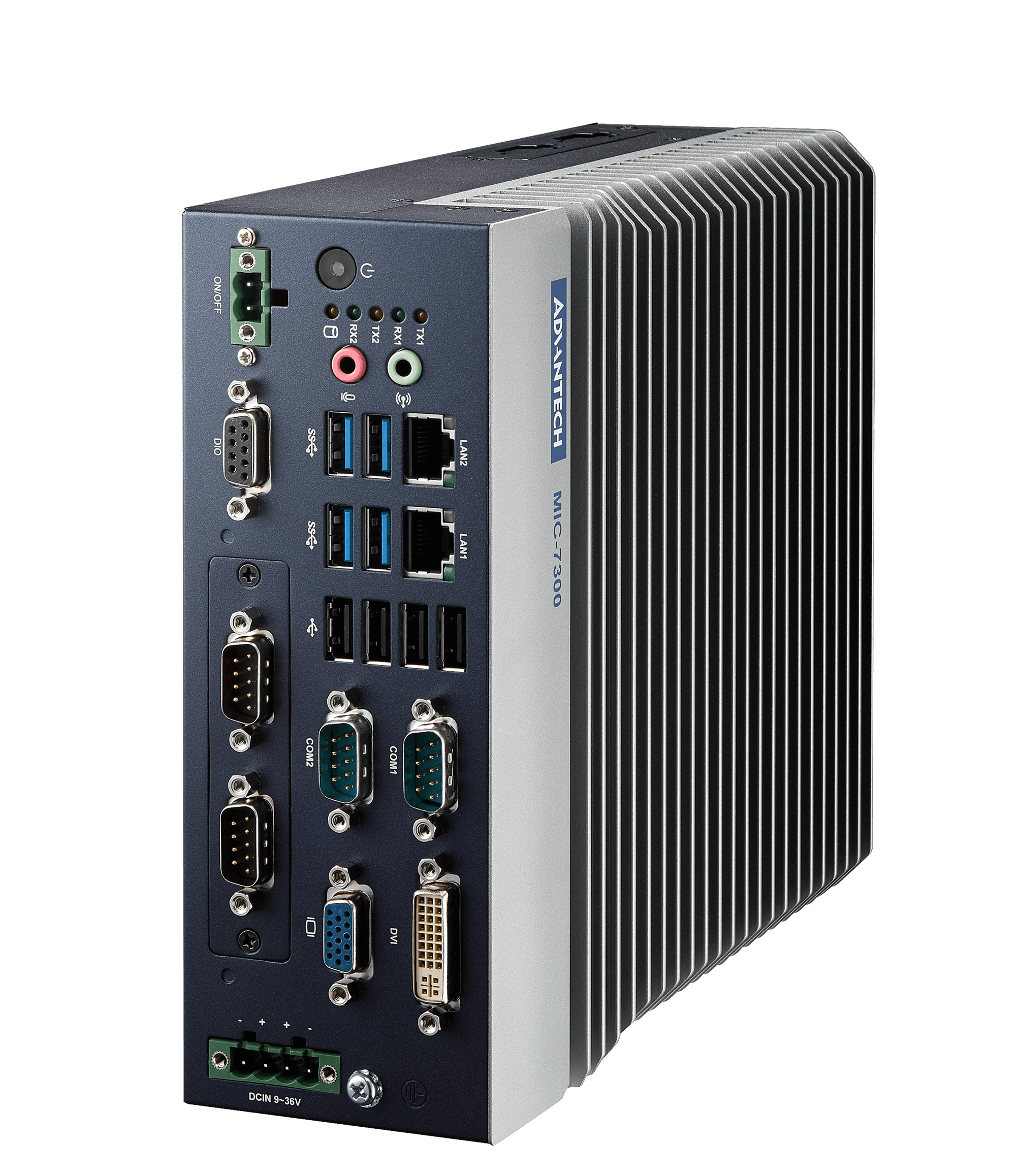

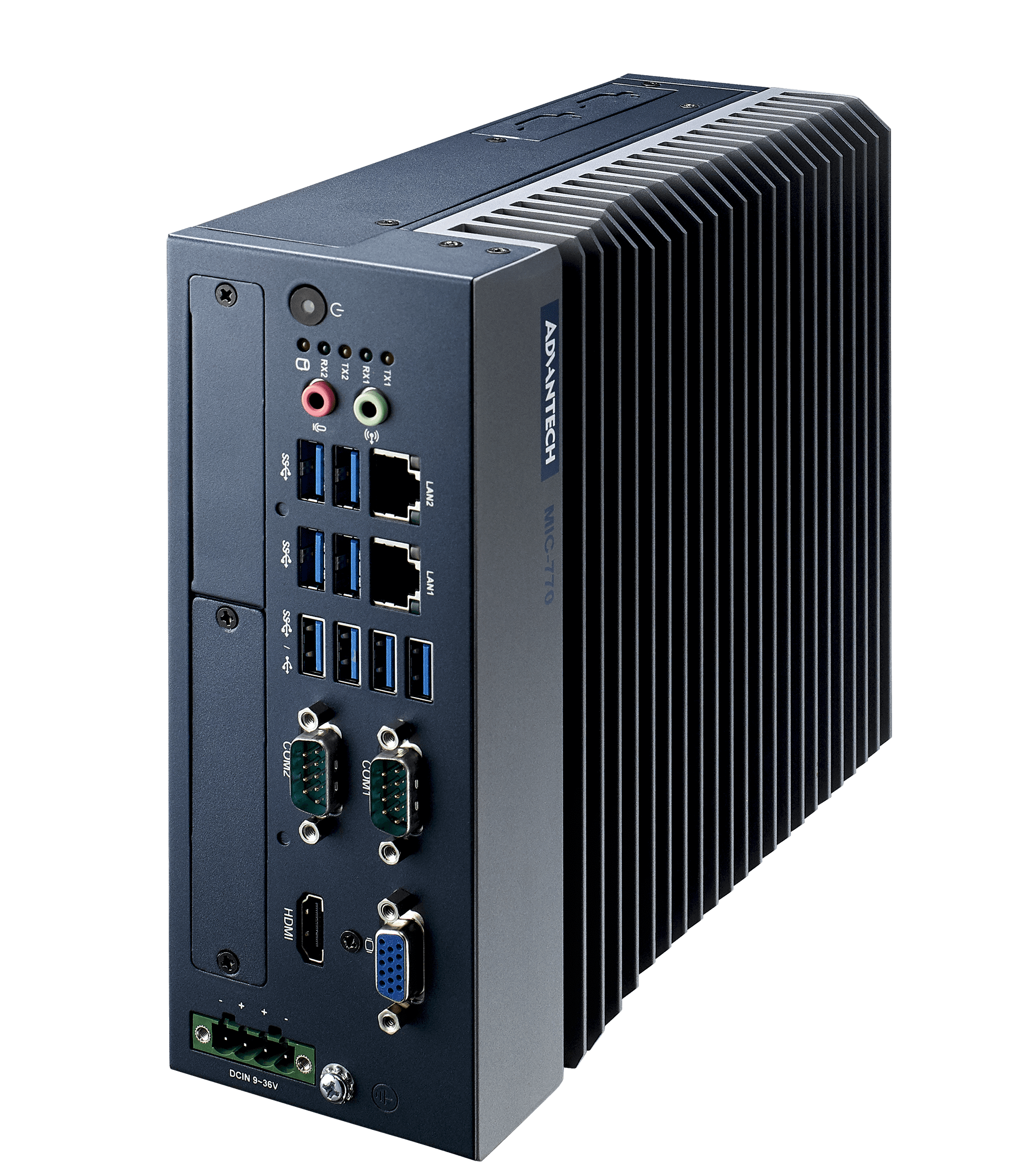

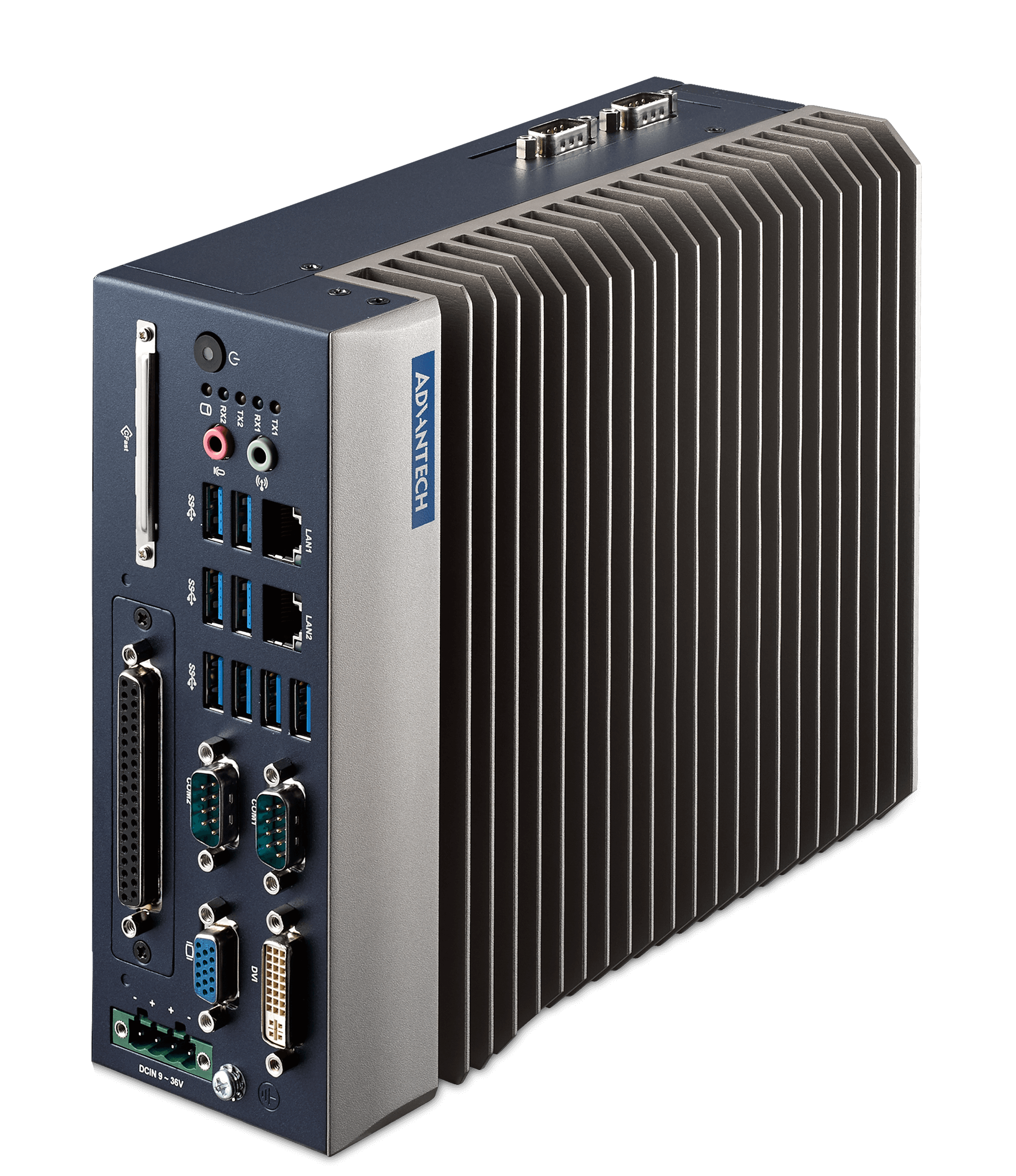

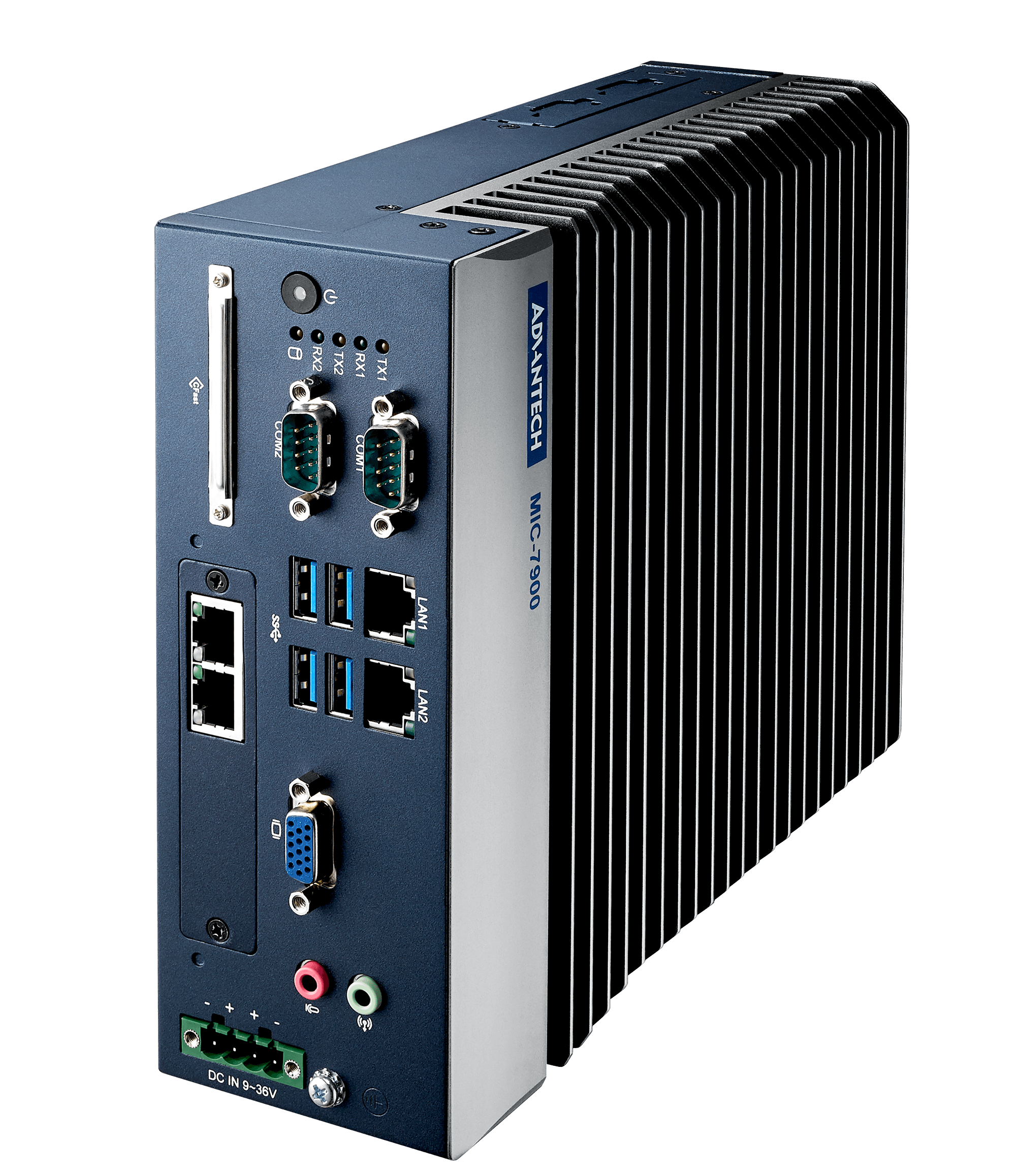

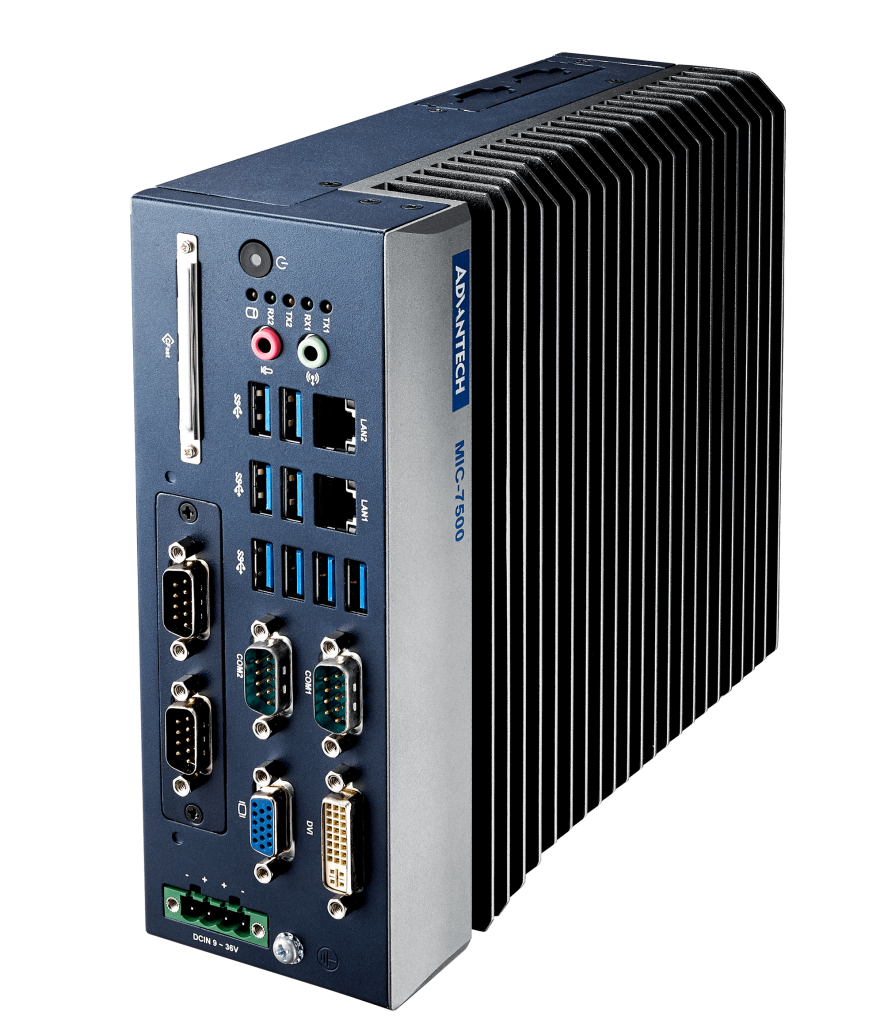

The MIC-7 series PCs are equipped with multiple I/O, but occasionally you need more! Located in the front panel for convenient cabling, the system’s flexible I/O interfaces can support various displays, expansion I/O, and intelligent alarm functions to enable diverse machine automation applications. Moreover, with the inclusion of a mini PCIe I/F onboard, Advantech’s PCM/MOS iDoor industrial Fieldbus, smart I/O, and communication modules can be integrated for enhanced functionality.

The MIC i-Module family supports PCIe/PCI I/F add-on cards, such as frame grabber, GPU, and motion control cards. In addition to the power sources from the PCIe/PCI slot, i-Modules reserve an additional 12 VDC of power from the onboard connector for cards that require more power. To better manage the heat generated by these add-on cards, optional system fans with smart functions are supported for enhanced thermal management. Furthermore, Advantech’s i-Modules provide additional HDD/SDD bays for increased storage capacity and also support removable storage bays.
