Ruggedcom l2 switch

RUGGEDCOM Layer 2 managed switches


Compact Ethernet Layer 2 switches

Compact Ethernet Layer 2 switches are designed for tight spaces
and come with a full array of intelligent functionality for robust
operation in harsh industrial environments.

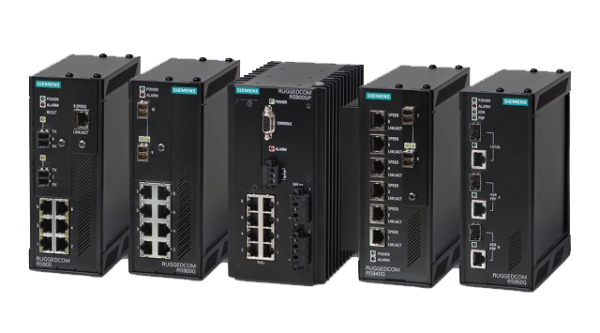

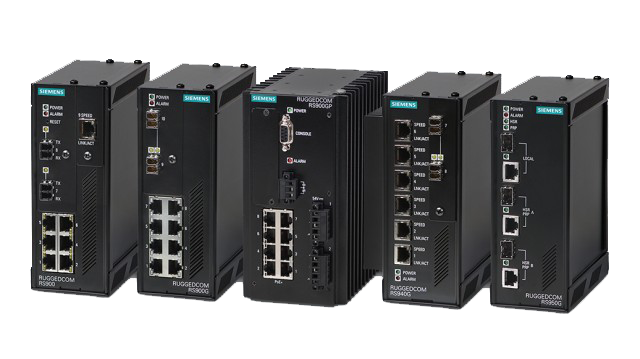

RUGGEDCOM RS900
9-port managed Ethernet switch
with fiber uplinks

• 6 x 10/100BASE-TX + 3 x 100BASE-FX
• Hazardous location certification:
Class 1 Division 2


RUGGEDCOM RS900G
10-port managed Ethernet switch
with Gigabit uplinks

• 8 x 10/100BASE-TX + 2 x 1000BASE-X
• Railway application certification:
EN50121-4
• Hazardous location certification:
Class 1 Division 2


RUGGEDCOM RS900GP
10-port managed PoE Ethernet switch
with Gigabit uplinks

• 8 x 10/100BASE-TX 802.3af/at compliant ports
• Up to 2 x 10/100/1000BASE-T or
2 x 100/1000BASE-X


RUGGEDCOM RSG907R
7-port managed Gigabit IEEE 1588
compatible RedBox and Ethernet
switch supporting HSR and PRP.

• 3 x RNA (Redundant Network Access) and coupler
SFP Ethernet ports according to IEC 62439-3 (1000BASE-X)
• 4 x SAN (Singly Attached Node) LC fiber optic ports (100BASE-FX)
• IEEE 1588 v2 (Ordinary and Transparent Clocks)


RUGGEDCOM RSG908C
8-port managed Gigabit IEEE 1588
compatible Ethernet switch.

• 4 x SFP Uplink Ethernet ports (1000BASE-X)
• 4 x LC fiber optic ports (100BASE-FX)
• IEEE 1588 v2 (Ordinary and Transparent Clocks)


RUGGEDCOM RSG909R
9-port managed Gigabit IEEE 1588
compatible RedBox and Ethernet
switch supporting HSR and PRP.

• 3 x RNA (Redundant Network Access) and coupler SFP Ethernet ports according to IEC 62439-3 (1000BASE-X)
• 6 x SAN (Singly Attached Node) RJ45 copper Ethernet ports (10/100/1000BASE-TX)
• IEEE 1588 v2 (Ordinary and Transparent Clocks)


RUGGEDCOM RSG910C
10-port managed Gigabit IEEE 1588
compatible Ethernet switch.

• 4 x SFP Uplink Ethernet ports (1000BASE-X)
• 6 x RJ45 copper Ethernet ports (10/100/1000BASE-TX)
• IEEE 1588 v2 (Ordinary and Transparent Clocks)


RUGGEDCOM RSG920P
20-port managed Gigabit Ethernet
switch with PoE

• 12 x 10/100/1000BASE-T + 4 x 100/1000BASE-X SFP
+ 4 x 10/100/1000BASE-T PoE (802.3af/802.3at)
• Powers up to 4 PoE enabled devices when used
with optional RPS1300 companion power supply


RUGGEDCOM RS940G
8-port managed Gigabit Ethernet switch

• 6 x 10/100/1000BASE-T + optional 2 x 1000BASE-X
• Hazardous location certification:
Class 1 Division 2


RUGGEDCOM RS950G
Managed Gigabit PRP/HSR RedBox

• 1x 100/1000BASE-X combo port (local/coupler)
• 2x 100/1000BASE-X combo ports (RNA)
• Gigabit throughput


RUGGEDCOM i800 product family
Unmanaged or managed Ethernet switch

• Four models to choose from with up to
8 x 10/100BASE-TX and up to 3 x fiber ports
• -20° C to + 60° C operating temperature (-40° C to + 85° C optional)
• i800: 8 x 10/100BASE-TX
• i801: 8 x 10/100BASE-TX + 1 x 1000BASE-LX
or 1 x 10/100/1000BASE-T
• i802: 6 x 10/100BASE-TX + 1x 100BASE-FX
or 2 x 100BASE-FX or 2 x 1000BASE-LX
or 2 x 10/100/1000BASE-T
• i803: 4 x 10/100BASE-TX + 1 x 100BASE-FX
+ 2 x 1000BASE-LX or 2 x 100BASE-FX


19” Ethernet Layer 2 switches

Rack-mounted Ethernet Layer 2 switches deliver utility-grade
performance, reliability and field-proven MTBF to lower OPEX costs.

RUGGEDCOM RSG2100
19-port modular managed Ethernet
switch with Gigabit uplinks

• 3 x 1000BASE-X + 16 x 10/100BASE-X
• Hazardous location certification: Class 1 Division 2


RUGGEDCOM RSG2100P
19-port modular managed PoE Ethernet
switch with Gigabit uplinks

• 3 x 1000BASE-X + 16 x 10/100BASE-X
• Hazardous location certification: Class 1 Division 2


RUGGEDCOM RSG2200
9-port managed Gigabit Ethernet switch

• 1000BASE-X and/or 10/100/1000BASE-T
• Hazardous location certification: Class 1 Division 2


RUGGEDCOM RST2228
28-port high density managed field modular
IEEE 1588 switch with 10 Gbit/s uplinks

• 4 x 1000BASE-X/10GBASE-X uplinks
• Up to 24 x 10/100/1000BASE-X ports
• Field-modular 4-port modules for added flexibility
• IEEE 1588 v2 with hardware time stamping


RUGGEDCOM RST2228P
28-port high density managed PoE field modular
IEEE 1588 switch with 10 Gbit/s uplinks

• 4 x 1000BASE-X/10GBASE-X uplinks
• Up to 24 x 10/100/1000BASE-X ports
• Field-modular 4-port modules for added flexibility
• Power-over-Ethernet with a shared power budget
of 500 Watt with 803.bt draft (60 Watt/port)
• IEEE 1588 v2 with hardware time stamping


RUGGEDCOM RSG2300
32-port managed Ethernet switch
with Gigabit uplinks

• 24 x 10/100BASE-TX + 8 x 10/100BASE-X
or 4 x 100/1000BASE-X and 4 x 10/100BASE-X
• Hazardous location certification: Class 1 Division 2


RUGGEDCOM RSG2300P
32-port managed Ethernet switch
with Gigabit uplinks

• 24 x 10/100BASE-TX + 8 x 10/100BASE-X
or 4 x 100/1000BASE-X and 4 x 10/100BASE-X
• Hazardous location certification: Class 1 Division 2


RUGGEDCOM RSG2488
28-port advanced utility-grade, high density
managed IEEE 1588 Gigabit Ethernet switch

• Field replaceable Ethernet and time
synchronization media modules
• Hot-swappable power supplies
• 28 x 1000BASE-X non-blocking architecture
• IEEE 1588 v2 hardware time stamping
